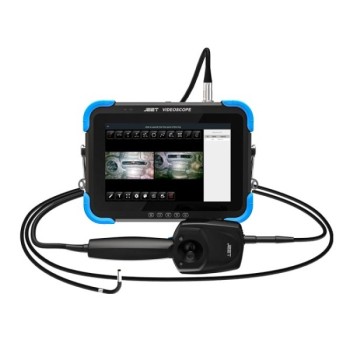

FC 3D Measurement Industrial Videoscope\3D Endoscopio\Endoscope\3D Borescopio

$FC 3D Measurement Industrial Videoscope\3D Endoscopio\Endoscope\3D Borescopio$

$FC 3D Measurement Industrial Videoscope\3D Endoscopio\Endoscope\3D Borescopio$ $FC 3D Measurement Industrial Videoscope\3D Endoscopio\Endoscope\3D Borescopio$

group name: FC

Min Order: 1 piece

brand name: JEET

model: FC 3D Measurement Industrial Videoscope

Acceptable payment methods: T/T

update time: Thu, 21 Nov 2024 17:35:40 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

The FC 3D measurement industrial videoscope developed by Jeet after years of careful

Detailed

3D Endoscopio Product function interface

Main Interface

Dual video switching

Image settings and resolution selection

Full Screen

Utility software

1、 MDI report generation and delivery software

Test report editing

Test report generates a PDF file

Test report is sent to the mobile terminal via bluetooth

2、Dual video input switching software

Parameters

Probe
Diameter	6.0mm
DOF	10~100mm
Sensor	HD image sensor
Resolution	HD 1000000 pixels
Working length	2m/3m, customized
Material	Abrasion-resistant alloy
Temperature	No

System
Case size	360×360×100mm
Host size	300×220×59mm
Host weight	1.9KG
Host material	magnesium aluminum alloy
Display resolution	1920×1200
Joystick handle size	235×90×70mm
Joystick handle weight	0.4KG
Articulation	360°
Bending angle	≤150°
Storage	Internal memory/SD card/U disk（optional）
I/O port	Micro USB×2 mini HDMI×1 SD slot×1 Air plug×1
Video output	HDMI
Light source	Real cold light source+fiber
Brightness level	5X
Illumination	Max 100000LX
White balance	Automatic
Battery capacity	3000mA/3.7V ×4
Battery charging	12V，1A
Power	10W
Battery work time	2.5h
DC mode	Support charging while use

Software
Operation system	Real-time intelligent multitasking operating system
User interface	Button+touch screen
File management	Intelligent file management system, support to the memory and SD card, USB storage media files and folders for the following operations: copy, cut, rename, delete, etc.
Image zoom in/out	3X
Image format	JPG
Video format	MP4
Text annotation	Photo text overlay, can choose the font size of the annotation text
Image annotation	Seal (default/custom), doodle, text input
Software upgrade	On-site upgrades are available via SD card and USB storage media
Language	English / French / German / Spanish / Japanese / Traditional Chinese / Simplified Chinese / Russian / Korean
