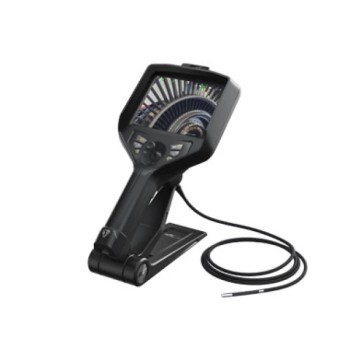

2.2MM Front View T51X HD Industrial Videoscope\endoscope\borescope

$2.2MM Front View T51X HD Industrial Videoscope\endoscope\borescope$

$2.2MM Front View T51X HD Industrial Videoscope\endoscope\borescope$ $2.2MM Front View T51X HD Industrial Videoscope\endoscope\borescope$

group name: 2.2MM Borescope

Min Order: 1 piece

brand name: JEET

model: 2.2MM Front View T51X

Acceptable payment methods: T/T

update time: Thu, 21 Nov 2024 17:41:05 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

Powerful intelligent image processing system: realize image rotation, white balance setting.

Detailed

Smart software

Powerful intelligent image processing system: realize image rotation, white balance setting, exposure control, image negative film mode, contrast measurement and other functions to meet various complex inspection scenarios.

White balance setting

Automatic white balance with strong color reproduction, manual white balance according to detection requirements

Exposure setting

Exposure suppression, polished objects are also clearly visible; exposure compensation, detection of large cavities is more efficient and clear.

Normal mode Negative film mode

Super clear image effect Improve contrast and increase defect resolution

Comparative measurement

The size of defects can be compared and analyzed by stylus and analog ruler

Flexible Articulation Control

360°precise articulation

Maximum bending angle≥190°

2-way articulation, damping type positioning design, precise probe locking technology, make the detection more accurate and efficient. Independently developed technology of long distance transmission ensures bending angle ≥100° , even the tube reaches to 10 meters.

Powerful hardware

JEET THX-series HD Endoscope adopts a modular design, and the main unit and the handle can be separated by one button. Equipped with 5.1-inch high-definition display host, optional 3.5-inch display host suitable for small spaces, and compatible with 1.7mm/2.0mm/2.8mm/3.9mm/6.0mm/8.0mm pipeline system, and also compatible with 2.0mm side view, 2.8 mm side view, 3.9mm side view, 3.9mm straight side view, 6.0mm side view, 6.0mm straight side view, 8.0mm straight side view pipeline. The products almost meet the needs of various inspection sites.

One key WIFI

All-way Joystick Control

Damping adjustment

High temperature alarm, orange alarm when the ambient temperature is above 65°C, red alarm when the ambient temperature is above 80°C and shutdown protection

The image can be output to a high-definition display through HDMI losslessly

Original intelligent dual power battery life system, working time ≥8 hours

The display screen has a resolution of 1280×960, high brightness, wide color gamut, full viewing angle, more delicate display, rich colors, and true color reproduction

Quality Assurance

The company's entire series of industrial endoscope have passed strict high and low temperature, waterproof, drop, vibration, pressure and other tests, and have RoHS, CE and other certification certificates. R&D and production are carried out in strict accordance with the ISO quality management system to provide users with high-quality professional products.

2.2MM Front View T51X HD Industrial Videoscope Parameters

Tube System	Probe diameter(mm)	Φ2.2
	Pixel camera	300,000
	Picture resolution	640×480
	Video resolution	640×480
	Depth of field (mm)	3mm-50mm/5mm-80mm
	Field of view	90°/120°
	View direction	0° front view
	light source	Front super bright ceramic light source/rear fiber cold light source
	Illuminance	Maximum 100,000+Lx can be manually adjusted in 10 levels
	Effective working time	1.5m/3.0m/5.0m/30m (other lengths can be customized)
	Permanent use device	42mm buffer protection device for connecting insertion tube and handle
	Bending direction	2 directions/360° omnidirectional bending
	Bending angle	Up to 190°
	Probe positioning	Damping automatic positioning, tightening and locking device
	Wireless image transmission	Wireless transmission of images to mobile phones, computers and other terminals (optional)
Monitor System	Monitor	5.1 inch color IPS LCD display, full viewing angle, coating protection, sunshade design
	Display resolution	1280×960
	Zoom function	Up to 8 times zoom
	Menu language selection	Chinese, English, Russian and other eight languages are available
	Exposure suppression	5 levels of exposure suppression adjustment
	White balance	Automatic white balance, automatically adjusts to eliminate light spots in different scenes to achieve the best imaging
	Image effects	Negative, black and white, standard
	Probe temperature display	Probe temperature display, high temperature alarm
	Waterproof and dustproof grade	Probe, objective lens and pipeline can withstand IP67 waterproof
	Software function	Support review, image parameter adjustment, flip, mirror
	Whole machine structure	Handheld integrated host
	Photo/video file format	JPEG/MOV
	Contrast measurement	Styli and analog scale for measurement can realize size analysis of internal defects and object size
	Data interface	HDMI video output interface, Micro USB port, interface with sealed settings, dust and splash proof
	Battery life	≥8 hours, built-in power supply can reach 8 hours
	battery capacity	Dual group 3.7V, 3200mAh×2
	Recharge	DC5V, maximum current 1A
	Total Weight	≤0.8Kg
	compatibility	The host can be replaced/upgraded independently, compatible with the replacement of probes of different diameters
Accessories	The standard configuration	1 dedicated instrument box, 1 endoscope host, 2 batteries, 1 card reader, 1 16G memory card, 1 charging device, 1 data cable, 1 instruction manual and 1 certificate of conformity.
